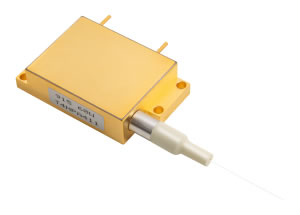

TY91520W01 Диод лазерный 20Вт 915нм 0.22NA для лазерной техники
|
Parameter |
Min |
Typ |
Max |
Unit |
Conditions |
|
Output Power |
20 |
- |
- |
W |
|
|
Centre Wavelength |
-10 |
915 |
+10 |
nm |
HR@ 1050-1150>25dB, HR@ 1060-1100>30dB |
|
Spectral Width (FWHM) |
- |
4.0 |
6.0 |
nm |
|
|
Threshold Current |
- |
0.5 |
0.9 |
A |
|
|
Operating Current |
- |
- |
13.0 |
A |
|
|
Operating Voltage |
- |
3.5 |
4.0 |
V |
|
|
Convention Efficiency |
- |
48 |
- |
% |
|
|
90% Power |
- |
0.18 |
- |
NA |
|
|
Wavelength shift vs. Temperature |
- |
0.3 |
- |
nm/℃ |
|
|
Slop Efficiency |
- |
1.6 |
- |
W/A |
|
|
Storage Temperature |
-30 |
25 |
70 |
°C |
Non-Condensing |
|
Operating Temperature |
15 |
25 |
55 |
°C |
|
|
Fiber Bend Radius |
37.5 |
- |
- |
mm |
|
|
Buffer Diameter |
- |
250 |
- |
μm |
|
|
Cladding Diameter |
- |
125 |
- |
μm |
|
|
Core Diameter |
102 |
105 |
108 |
μm |
|
|
Numeric Aperture |
0.2 |
0.22 |
0.24 |
- |
|
|
Fiber length |
0.9 |
- |
- |
M |
|
|
Protection Tube |
0.9 |
- |
1.5 |
mm |
|
|
Fiber Connector |
- |
CO |
- |
- |
